SPATIAL EXPERIENCE / CREATIVE TECHNOLOGY
SPATIAL EXPERIENCE / CREATIVE TECHNOLOGY
RESONANCE
RESONANCE
RESONANCE
Listen with your whole body.
Listen with your whole body.
Listen with your whole body.
A multisensory exhibition that turns sound into light, vibration, and shared participation.
A multisensory exhibition that turns sound into light, vibration, and shared participation.
A multisensory exhibition that turns sound into light, vibration, and shared participation.
Shared Resonance / Spatial concept rendering.
Shared Resonance / Spatial concept rendering.
PROJECT
PROJECT
Academic studio project · Spring 2026 — Spatial Scenography Studio II
Academic studio project · Spring 2026 — Spatial Scenography Studio II
MY ROLE
MY ROLE
Concept, spatial experience, interaction prototyping, 3D modeling and visual development
Concept, spatial experience, interaction prototyping, 3D modeling and visual development
TOOLS
TOOLS
Rhino 3D · Unreal Engine · TouchDesigner · Photoshop · Illustrator
Rhino 3D · Unreal Engine · TouchDesigner · Photoshop · Illustrator
PROJECT CONTEXT
PROJECT CONTEXT
LA Arts District · Speculative Spotify partnership; not commissioned.
LA Arts District · Speculative Spotify partnership; not commissioned.
WHY RESONANCE
What if listening became a physical experience?
What if listening became a physical experience?
Sound surrounds us, yet often slips into the background. I wanted to create a space where people notice it through their bodies and become part of what they hear.
Sound surrounds us, yet often slips into the background. I wanted to create a space where people notice it through their bodies and become part of what they hear.
Resonance turns that question into a journey: from individual attention to shared listening and active contribution, before returning to reflection.
Resonance turns that question into a journey: from individual attention to shared listening and active contribution, before returning to reflection.
THE DESIGN RESPONSE
Choreograph attention,
then invite participation.
Choreograph attention,
then invite participation.
For visitors curious about perception, immersive environments, and a slower kind of engagement.
The warehouse setting in the LA Arts District offers room for a sequence of distinct light and sound conditions.
For visitors curious about perception, immersive environments, and a slower kind of engagement.
The warehouse setting in the LA Arts District offers room for a sequence of distinct light and sound conditions.
01
01
Sequence an emotional arc
Sequence an emotional arc
Move from focus to immersion, participation, and reflection.
Move from focus to immersion, participation, and reflection.
02
02
Translate between senses
Translate between senses
Connect sound with vibration, light, and visible patterns.
Connect sound with vibration, light, and visible patterns.
03
03
Make room for contribution
Make room for contribution
Let touch and voice become part of the experience.
Let touch and voice become part of the experience.
FIVE SPACES, ONE CONTINUOUS JOURNEY
The one-way route changes how visitors engage with sound, not just where they go.
Spatial progression axonometric diagram: 5 main experiences, supported by check-in and back-of-house spaces.
Spatial progression axonometric diagram: 5 main experiences, supported by check-in and back-of-house spaces.
01
Quiet Shift
Quiet Shift
Notice
Notice
01
Quiet Shift
Notice
02
Inner Resonance
Inner
Resonance
Touch
Touch
02
Inner Resonance
Touch
03
Shared Resonance
Shared
Resonance
Feel together
Feel together
03
Shared Resonance
Feel together
04
Echo Exchange
Echo
Exchange
Contribute
Contribute
04
Echo Exchange
Contribute
05
After Echo
After Echo
Reflect
Reflect
01 / QUIET SHIFT
Leave the outside world behind.
Leave the outside world behind.
A quiet threshold prepares the transition into the exhibition.
A quiet threshold prepares the transition into the exhibition.
The acoustic corridor and subtly rising floor mark a change in pace. Visitors are invited to slow down and notice small sounds - footsteps, breath, and movement - before entering the more responsive spaces.
The acoustic corridor and subtly rising floor mark a change in pace. Visitors are invited to slow down and notice small sounds - footsteps, breath, and movement - before entering the more responsive spaces.
02 / INNER RESONANCE
Your body becomes the signal.
Your body becomes the signal.
Spatial concept rendering / A temperature-sensitive interaction surface.
Spatial concept rendering / A temperature-sensitive interaction surface.
WHAT YOU DO
Place your hand on the responsive surface. Your hand temperature becomes an input to the visual and sonic experience.
Place your hand on the responsive surface. Your hand temperature becomes an input to the visual and sonic experience.
WHY IT MATTERS
The first active moment makes an invisible bodily signal perceptible. You begin to shape the space, rather than only observe it.
The first active moment makes an invisible bodily signal perceptible. You begin to shape the space, rather than only observe it.
HOW THE PROPOSED SYSTEM WORKS
Touch and temperature sensing → TouchDesigner mapping → visual and sonic response
Touch and temperature sensing → TouchDesigner mapping → visual and sonic response

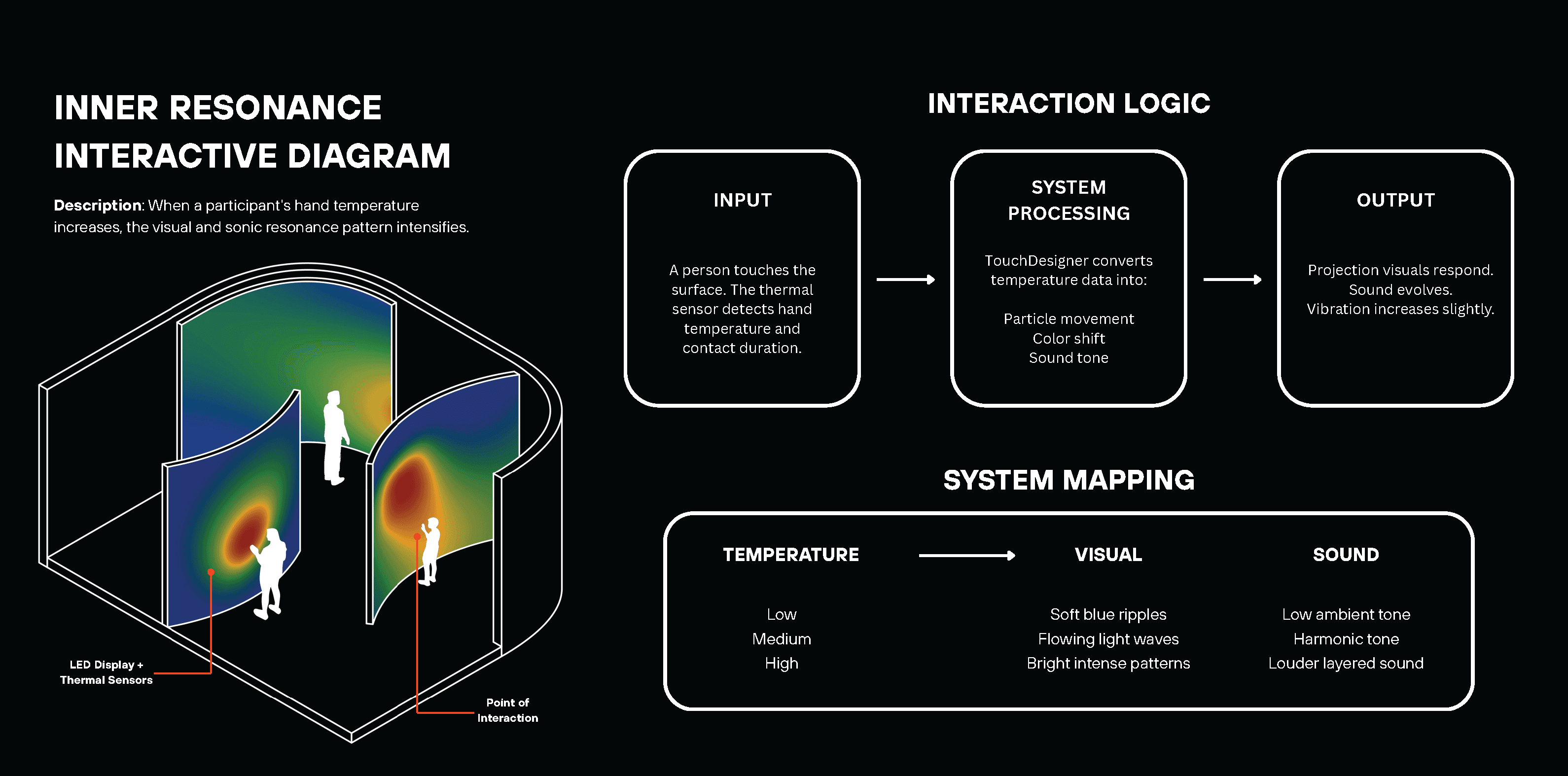

Proposed installation logic / Temperature and contact duration map to changes in light, sound tone, and vibration.
PROTOTYPE / HAND INTERACTION
HAND-INTERACTION PROTOTYPE
From a diagram to a testable response.
From a diagram to a testable response.
From a diagram to a testable response.
I developed a hand-interaction prototype to explore how a simple bodily action could produce a visible response. The study connects the sensory idea to an interaction that can be experienced and refined.
I developed a hand-interaction prototype to explore how a simple bodily action could produce a visible response. The study connects the sensory idea to an interaction that can be experienced and refined.
03 / SHARED RESONANCE
Feel the same sound, together.
Feel the same sound, together.
Spatial concept rendering / The collective peak of the exhibition.
WHAT YOU EXPERIENCE
Sit within a circular listening space. The proposal combines sound, seating vibration, and overhead patterns so that listening can be felt and shared.
Sit within a circular listening space. The proposal combines sound, seating vibration, and overhead patterns so that listening can be felt and shared.
WHAT DRIVES THE RESPONSE
Sound input drives the changing visual field. Visitors encounter the same rhythm together, through its visual, sonic, and tactile qualities.
Sound input drives the changing visual field. Visitors encounter the same rhythm together, through its visual, sonic, and tactile qualities.
A / PROPOSED PHYSICAL INSTALLATION
Making vibration visible.
Amplified sound vibrates a water dish. A ring light reveals the patterns; a camera and projector enlarge them onto the ceiling.
Amplified sound vibrates a water dish. A ring light reveals the patterns; a camera and projector enlarge them onto the ceiling.

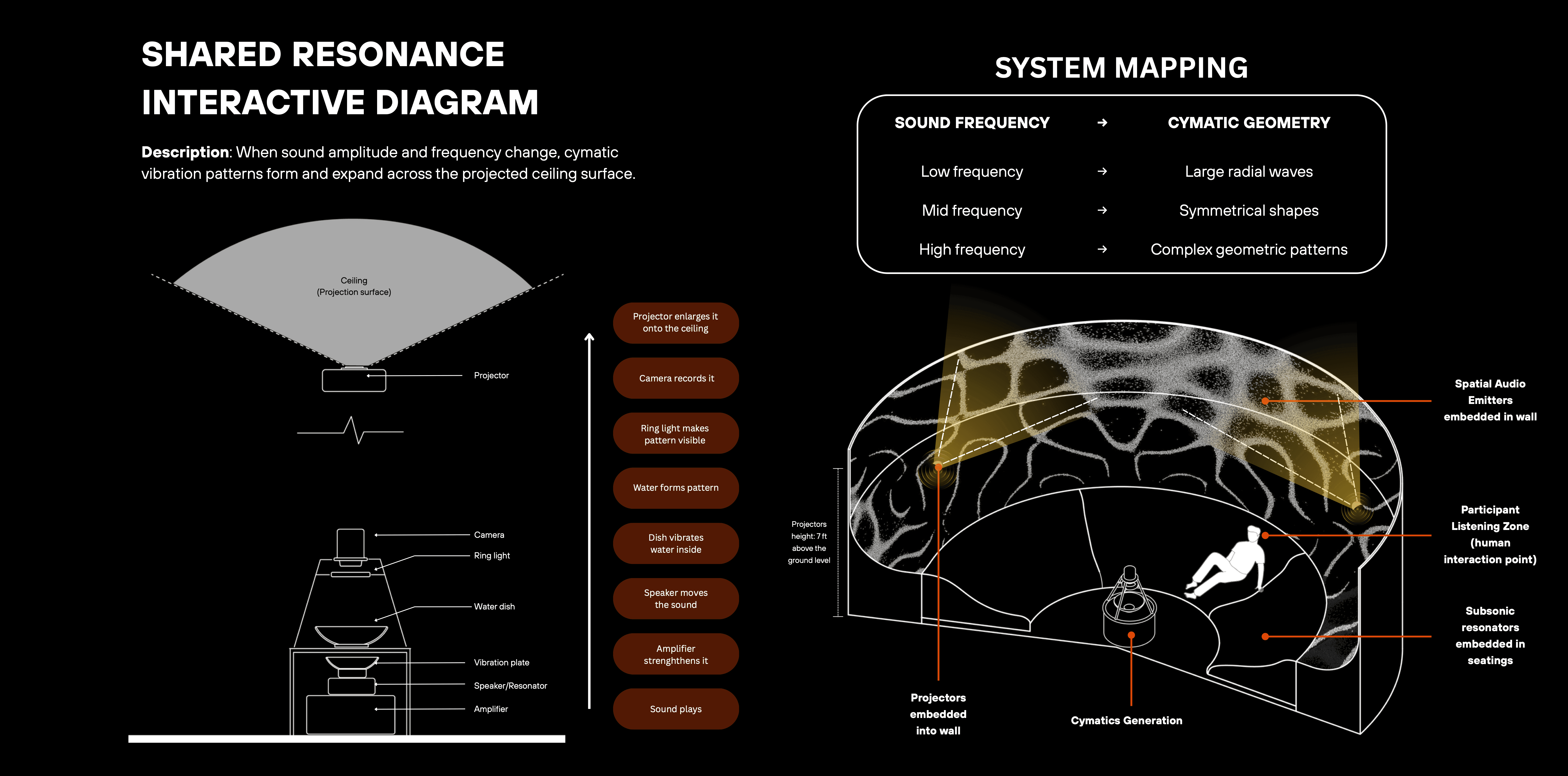

Physical-system proposal / Wall audio and resonators in the seating extend the shared sensory field.
B / TOUCHDESIGNER PROTOTYPE
Testing the visual translation.
Testing the visual translation.
Sound input becomes visual behavior.
I used TouchDesigner to explore sound-driven, cymatic-inspired patterns. Audio input is mapped to a changing visual output, testing a digital approach to the room’s visual language.
I used TouchDesigner to explore sound-driven, cymatic-inspired patterns. Audio input is mapped to a changing visual output, testing a digital approach to the room’s visual language.
The digital study tests visual behavior; the physical-system diagram proposes how cymatics could inhabit the room.
The digital study tests visual behavior; the physical-system diagram proposes how cymatics could inhabit the room.
Output still from the final presentation / Cymatics motion study.

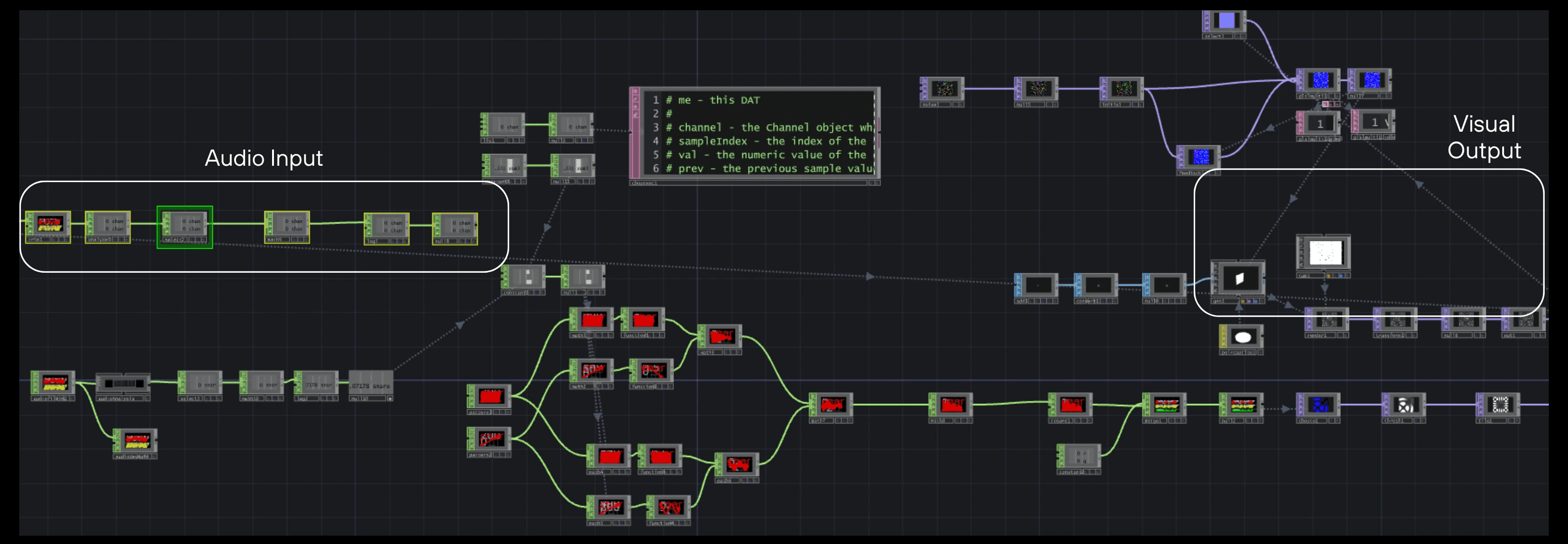

TouchDesigner network / Audio input is mapped to a generative visual output.
05 / ECHO EXCHANGE
Leave a voice in the space.
Leave a voice in the space.
WHAT YOU DO
Speak, hum, or whisper. Your voice is recorded and played back with delay and reverb, inviting you to listen to your own contribution differently.
Speak, hum, or whisper. Your voice is recorded and played back with delay and reverb, inviting you to listen to your own contribution differently.
Speak, hum, or whisper. Your voice is recorded and played back with delay and reverb, inviting you to listen to your own contribution differently.
THE EXPERIENCE GOAL
A private sound becomes part of a shared environment. The room shifts the visitor from receiving an experience to contributing to it.
A private sound becomes part of a shared environment. The room shifts the visitor from receiving an experience to contributing to it.
A private sound becomes part of a shared environment. The room shifts the visitor from receiving an experience to contributing to it.
CREATIVE TECHNOLOGY / VOICE PROCESSING
CREATIVE TECHNOLOGY / VOICE PROCESSING
Record. Transform. Listen back.
Record. Transform. Listen back.
Record. Transform. Listen back.
Microphone input → recording buffer → delay / reverb → audio output
Microphone input → recording buffer → delay / reverb → audio output
Microphone input → recording buffer → delay / reverb → audio output
TouchDesigner / Record, playback, reset, and effect controls support the voice-processing prototype.

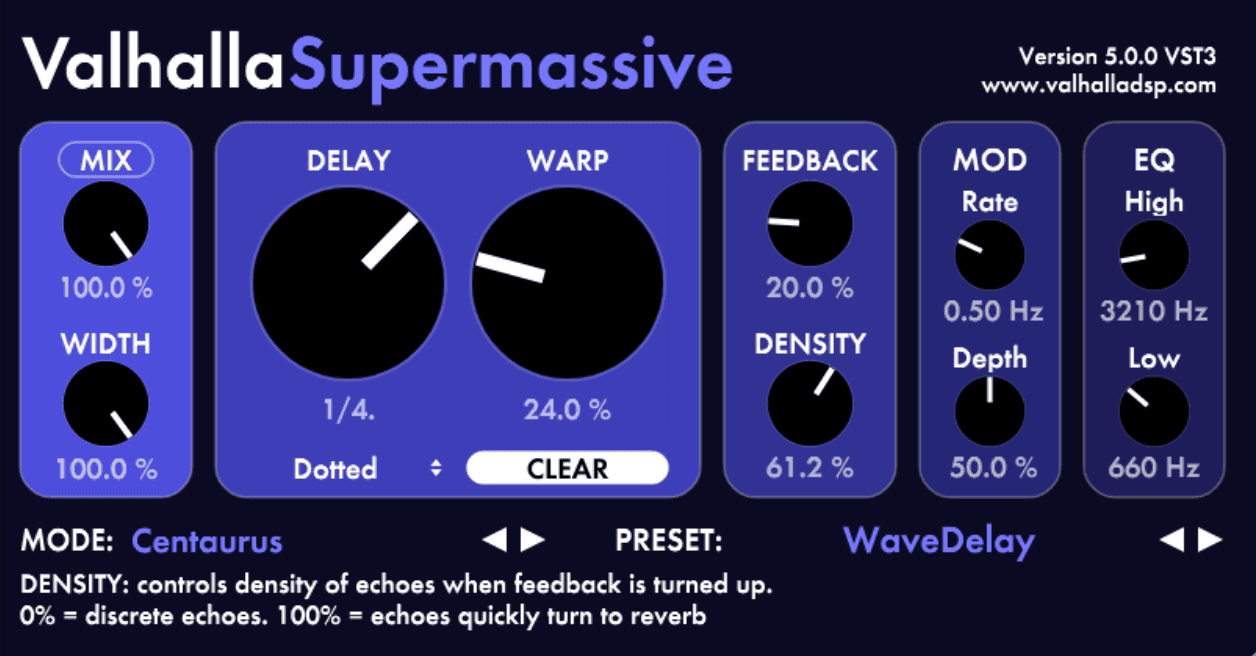

VST delay / reverb effect
Extending the voice.
Extending the voice.
TouchDesigner manages the audio input and recording controls. The Valhalla Supermassive VST effect extends the recorded voice through delay and reverb.
TouchDesigner manages the audio input and recording controls. The Valhalla Supermassive VST effect extends the recorded voice through delay and reverb.
05 / AFTER ECHO
05 / AFTER ECHO
Return to a natural rhythm.
Return to a natural rhythm.
Return to a natural rhythm.
Spatial concept rendering / A reflective closing space.
After the participatory rooms, the final space asks for less. Visitors can pause with ambient sound and natural imagery, letting the experience settle rather than immediately moving on.
After the participatory rooms, the final space asks for less. Visitors can pause with ambient sound and natural imagery, letting the experience settle rather than immediately moving on.
After the participatory rooms, the final space asks for less. Visitors can pause with ambient sound and natural imagery, letting the experience settle rather than immediately moving on.
TOUCHDESIGNER / AMBIENT VISUAL STUDY
TOUCHDESIGNER / AMBIENT VISUAL STUDY
Let the image carry a trace of time.
Let the image carry a trace of time.
Let the image carry a trace of time.
Beach footage and sound provide the source material. Feedback and slit-scan processing explore an image that stretches and lingers – a visual counterpart to the idea of an after-echo.
Beach footage and sound provide the source material. Feedback and slit-scan processing explore an image that stretches and lingers – a visual counterpart to the idea of an after-echo.
Beach footage and sound provide the source material. Feedback and slit-scan processing explore an image that stretches and lingers – a visual counterpart to the idea of an after-echo.

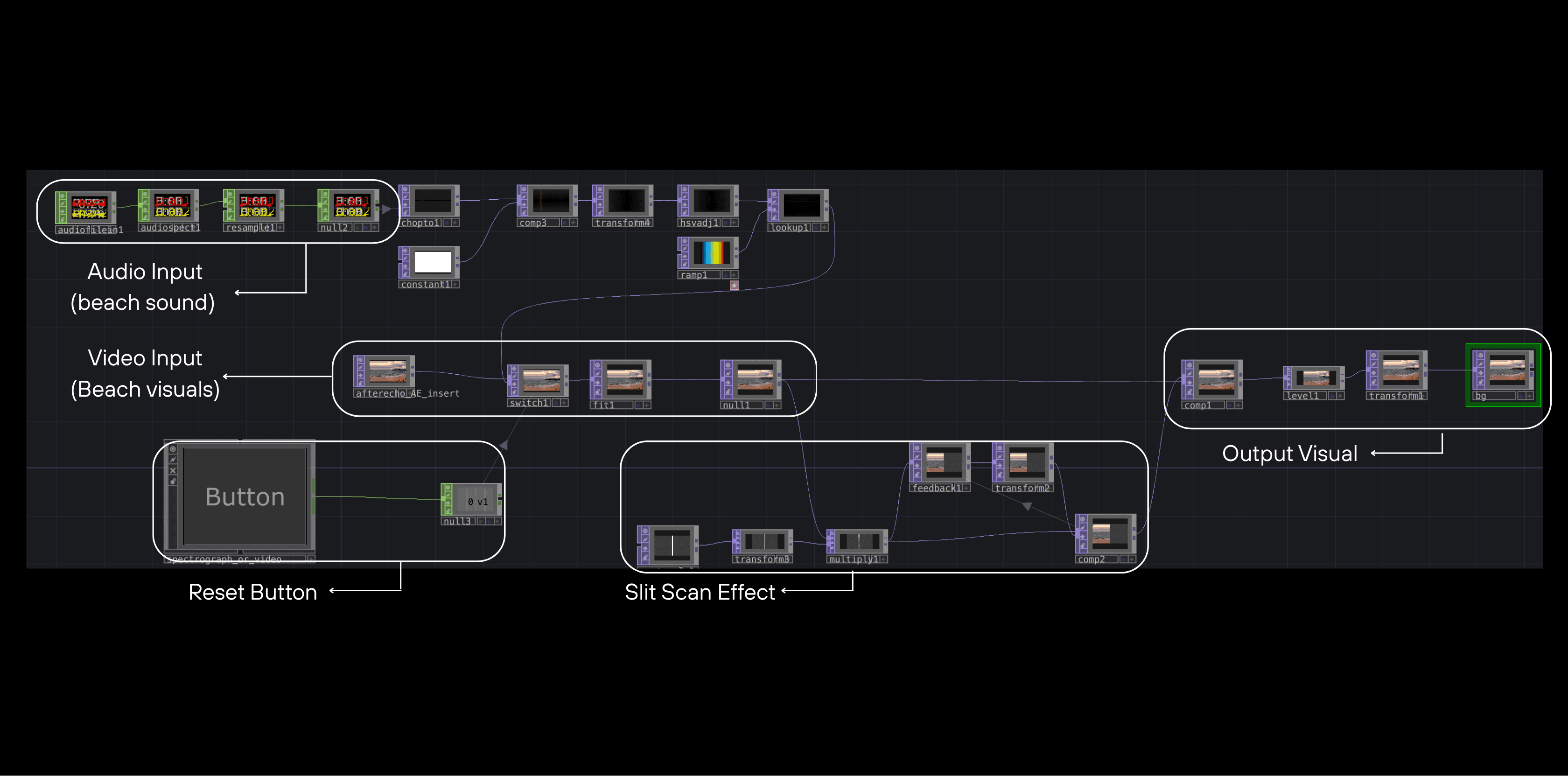

Ambient visual workflow / This study is distinct from the visitor-input prototypes in the earlier rooms.
DESIGN DEVELOPMENT / SPATIAL PLANNING
DESIGN DEVELOPMENT / SPATIAL PLANNING
Giving the experience a spatial structure.
Giving the experience a spatial structure.
Giving the experience a spatial structure.
The one-way route supports the emotional sequence, while the plan accommodates arrival, check-in, circulation, and support spaces. Sections bring the sensory concepts back to scale, enclosure, and the position of the body.
The one-way route supports the emotional sequence, while the plan accommodates arrival, check-in, circulation, and support spaces. Sections bring the sensory concepts back to scale, enclosure, and the position of the body.
The one-way route supports the emotional sequence, while the plan accommodates arrival, check-in, circulation, and support spaces. Sections bring the sensory concepts back to scale, enclosure, and the position of the body.

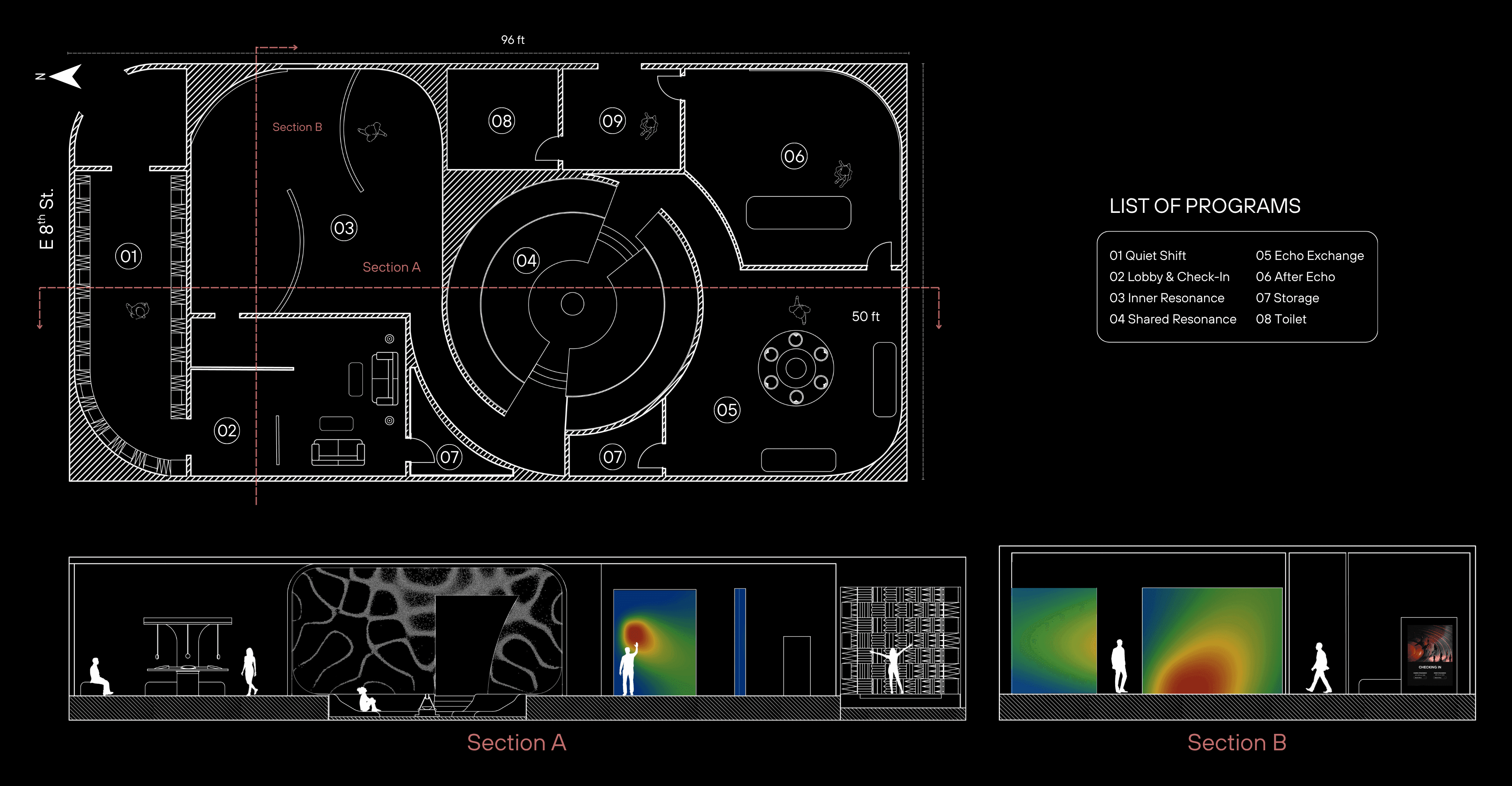

Floor plan and sections / Final presentation drawing.
THE THRESHOLD IN SECTION
THE THRESHOLD IN SECTION
A small physical shift marks a different way of listening.
A small physical shift marks a different way of listening.
The Quiet Shift section shows how the rising floor, acoustic surfaces, and projected logotype frame the transition into the exhibition.
The Quiet Shift section shows how the rising floor, acoustic surfaces, and projected logotype frame the transition into the exhibition.
DESIGN DEVELOPMENT / VISUAL LANGUAGE
DESIGN DEVELOPMENT / VISUAL LANGUAGE
An identity built around listening and touch.
An identity built around listening and touch.
An identity built around listening and touch.
Poster studies and an early AI-assisted concept film explored the exhibition’s visual and emotional tone. These early studies established a tactile, cinematic language before I developed the final spatial sequence.
Poster studies and an early AI-assisted concept film explored the exhibition’s visual and emotional tone. These early studies established a tactile, cinematic language before I developed the final spatial sequence.
Poster studies and an early AI-assisted concept film explored the exhibition’s visual and emotional tone. These early studies established a tactile, cinematic language before I developed the final spatial sequence.
Poster explorations / Listening, touch, and the lingering presence of sound.
EARLY CONCEPT FILM
EARLY CONCEPT FILM
Early AI-assisted concept film / Still from the final presentation.
Establishing the atmosphere.
Establishing the atmosphere.
Vinyl, touch, listening, and bodily presence formed an early visual direction. The AI-assisted film explores the emotional tone of Resonance before the final spatial sequence was developed.
Vinyl, touch, listening, and bodily presence formed an early visual direction. The AI-assisted film explores the emotional tone of Resonance before the final spatial sequence was developed.
REFLECTION
REFLECTION
Designing the room and the response.
Designing the room and the response.
Designing the room and the response.
Resonance brings my spatial design and creative technology work into the same process. The room shapes how visitors encounter sound; the interaction system gives them a way to affect it.
Resonance brings my spatial design and creative technology work into the same process. The room shapes how visitors encounter sound; the interaction system gives them a way to affect it.
The result is an exhibition concept supported by spatial drawings and interaction prototypes – a foundation for further testing at full scale.
The result is an exhibition concept supported by spatial drawings and interaction prototypes – a foundation for further testing at full scale.
